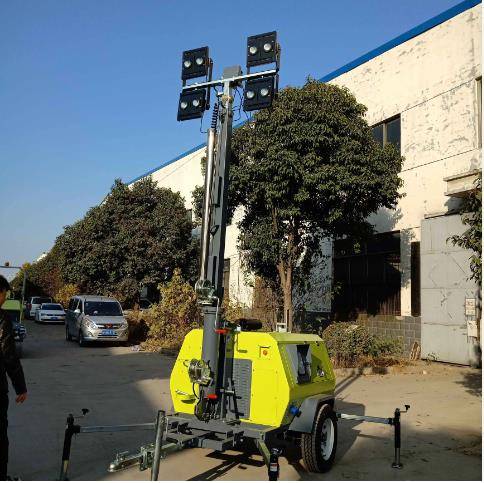

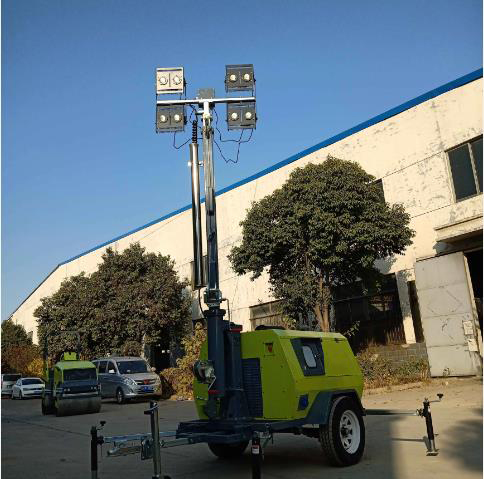

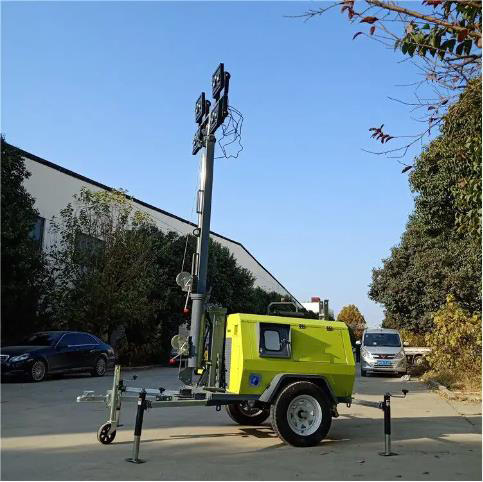

4TN400 Trailer Mounted Light Tower

Irradiation Range:With three stage raising and lowing mast, the maximum extension of the mast is 2.8m. The mast as the axis is able to do 360°turning so that to realize the irradiation at any angle. Power Supply: two power supply methods. Using generator power supply, it works continuously over 6h with full tank gasoline; using 220V main supply could realize long time working continuously. Operate easily: With separate smart button to control on/off of the two lamps and convenient to adjust the height of the mast manually;the lamp consists of two main parts: the lamp holder (including the lamp panel and mast) and the generator stand (including generator, electric case and generator base). It is convenient to assemble, disassemble and transport. Operate easily and with excellent applicability. Service Environment:Adopt multiple shockproof structure design, excellent anti-shock performance and could use reliably in the high frequency shock environment.


Tel: +86-18553715372

Email: sales@chinacoalintl.com

Share Share

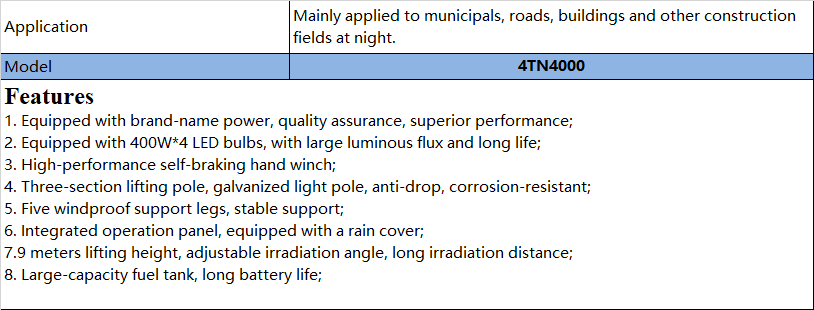

Features

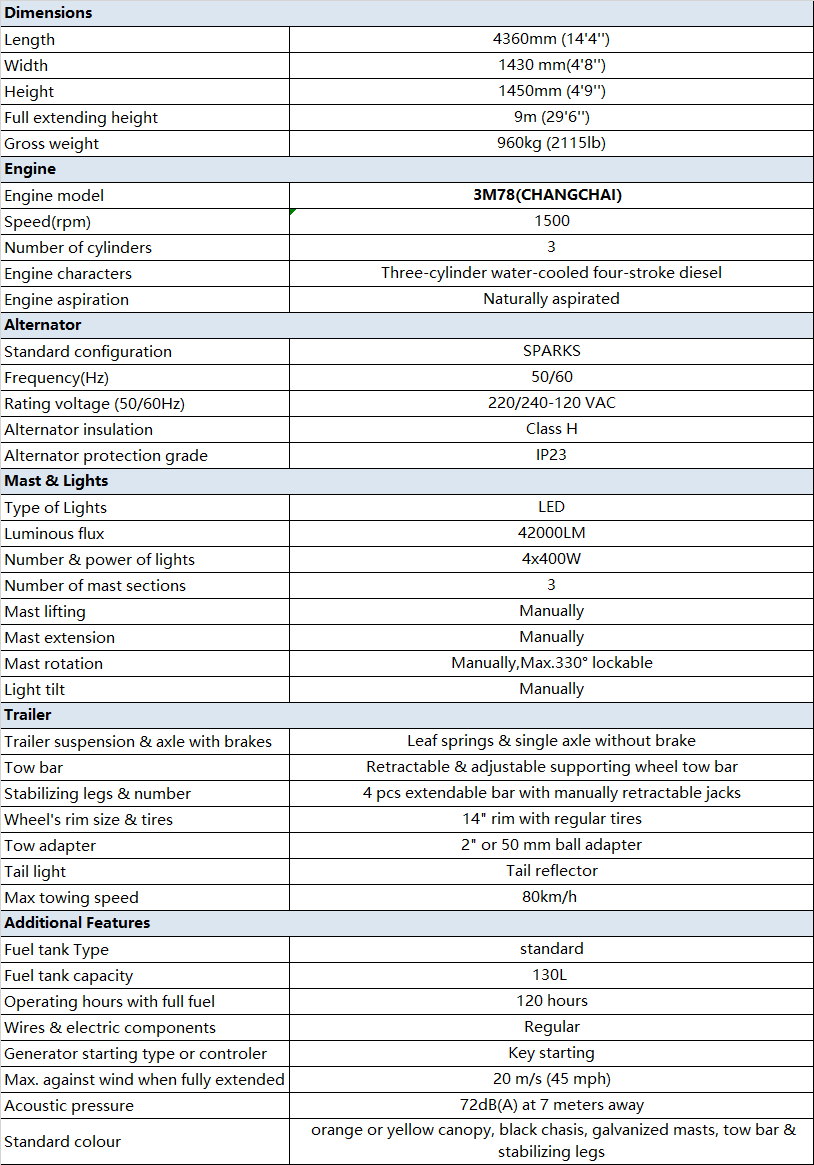

Parameters

 Rated voltage

220V

 Working voltage

220V

Lamp panel

 Lamp power

4x1000W(standard)

Light capacity

85000lm

Lamp lifetime

10000h

Mast

Min height

3M

Max height

9M

Generator

Output voltage

220V

Power capacity

7.5KW

 Retracted dimension

4392x1626x1600mm

Gross weight

580 Kg
