ZM18 Indoor Demolition Chinese 1.8 Ton Excavator 1800kg Hydraulic Mini Excavator Mini Digger

Preheating of the hydraulic device. When the temperature of the hydraulic oil is low, rapid operation will cause damage to the hydraulic device.


Tel: +86-18660761303

Email: sales@chinacoalintl.com

Share Share
Features

Introductions Of ZM18 Indoor Demolition Chinese 1.8 Ton Excavator 1800kg Hydraulic Mini Excavator Mini Digger

Small excavators are widely used in greenhouse orchards, mountain ditches, rural renovation, indoor and outdoor, construction projects, road finishing and other working conditions.

1. Preheating of the hydraulic device. When the temperature of the hydraulic oil is low, rapid operation will cause damage to the hydraulic device.

1.1. The small excavator engine runs at a medium speed, operates the bucket, and preheats;

1.2. Jack up the machine to rotate the crawler, and preheat the left and right travel motors respectively;

1.3. Then, raise the speed of the engine to the highest, and make the bucket and stick work continuously for 5 minutes;

At the same time, the safety of the surrounding environment should be fully paid attention to during the warm-up operation. When the temperature is low, the reaction of people will be relatively slow, so it is necessary to prevent people and objects around them during warm-up.

Second, the preheating of the small excavator engine, the first step in getting on the car, the engine should be started and run at low speed for 5 minutes. At the same time, the following inspections should be carried out during the warm-up process of the small excavator engine:

2.11. Whether the oil warning light is off;

2.2. Whether there is oil leakage or water leakage;

2.3. Whether the sound of the engine and the color of the exhaust are normal;

2.4. Whether the charging indicator light is off;

2.5. Whether each part of the machine is abnormal.


Parameters

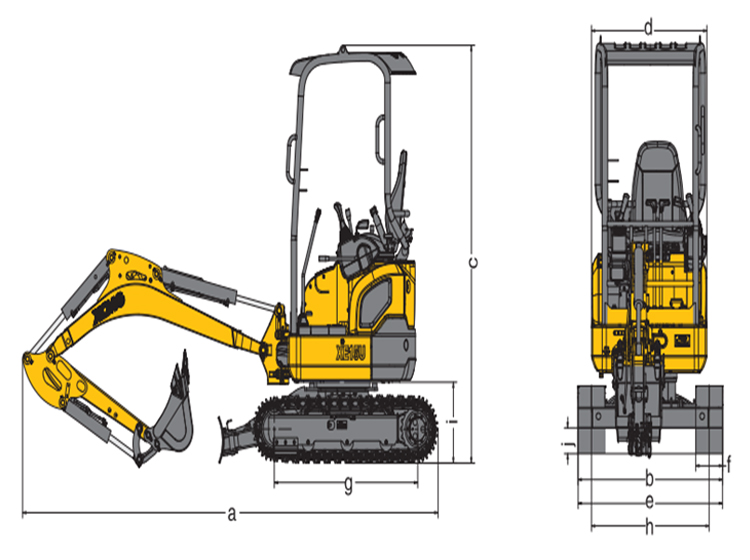

Parameters Of ZM18 Indoor Demolition Chinese 1.8 Ton Excavator 1800kg Hydraulic Mini Excavator Mini Digger

Performance
parameters

Specification

Size range

Specification

Vehicle weight

1450kg

wheelbase

820mm

Standard Bucket Capacity

0.035m3

Track ground length

1300mm

Working device form

backhoe

Minimum ground clearance

400mm

Power

10.3KW/15 hp

Chassis width

1100mm

Maximum digging radius

2400mm

Track width

180mm

Maximum excavation depth

1850mm

Shipping length

2400mm

Maximum excavation height

2740mm

full vehicle height

2300mm

Maximum unloading height

2400mm

radius of gyration

1200mm

Multi-way valve

Imported from Japan

hydraulic pump

Imported from Italy

Overall size

2200mm*1100mm*2200mm
